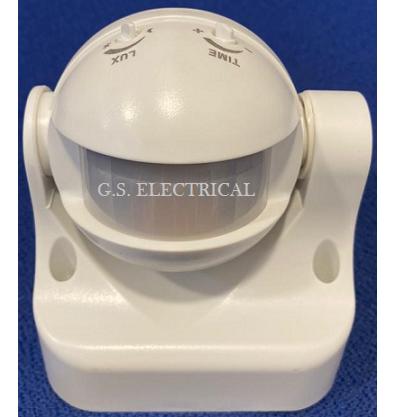

This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, practical functions and contain of wide detection range made up of up and down, left and right service field. It also utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once and identify day and night automatically as well as easy to install.

Specifications:

Power Source               : 220V/AC - 240V/AC

Power Frequency          : 50/60 Hz

Ambient Light                : <10-2000 LUX (adjustable)

Time-Delay                    : min : 10sec±3sec

                                        max: 7min±2min

Rated Load                    : 1200W (incandescent lamp)/ 300W (energy-saving lamp)

Detection Distance        : 12m max (<24°C)

Detection Range            : 180°

Working Temperature     : -20 ~ +40°C

Working Humidity           : <93%RH

Installation Height           : 1.8m ~ 2.5m

Power Consumption       : <0.9W (Work)/ <0.9W (Static)

Detection Moving Speed: 0.6 ~ 1.5m/s

 **NOTED: When testing in daylight, please turn LUX knob to SUN position, otherwise the sensor lamp could not work!
