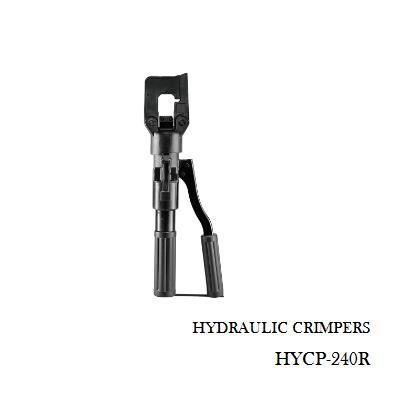

Description

Specifications:

• ​Max. Pressure : 550 bar
  Oil Required : 23 cc
  Max. Output : 5.85 tons / 52.0 kN
• Length : 377 mm
  Weight : 2.4 kgs
• Crimping Capacity :
  Accepts BEKU type dies
  Stock Dies are for DIN 46235 terminals
  Dies sold separately (AHE1016/2535/5070/95120/150/185/240)
• Features :
  Light weight, compact and slim design.
  Single action cylinder with spring return.
  Accepts BEKU type dies
  Yoke and Latch type head for easy die changes and removal of connectors.
  Adjustable ram stroke, 10-15 mm to minimize pumping action.
  Built-In bypass relief valve.
  Small handle spread for close quarter applications.
• Accessories :
  Plastic carrying case
